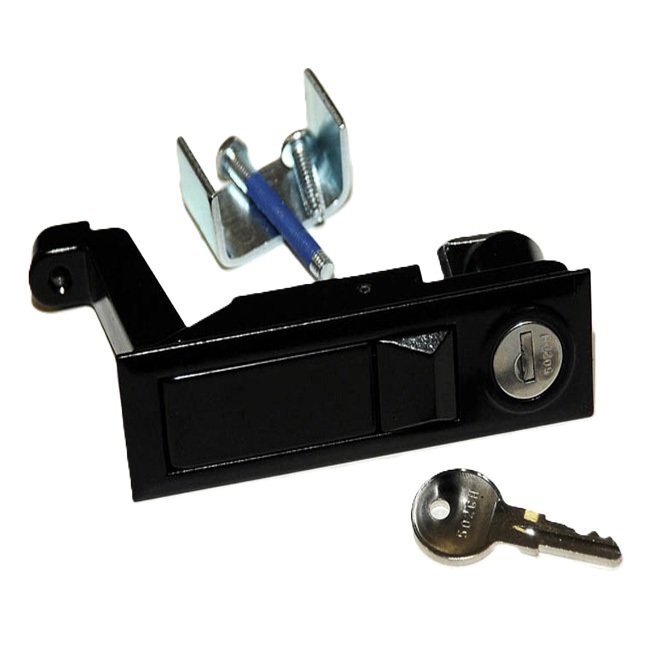

Locking Trigger Latch-Black Powder Coated Keyed 502
Locking push button trigger latch-black powder coated die cast zinc.
Single point compression latch.
Trigger latch has dust shutter on key cylinder to help reduce dirt from entering cylinder.
Adjustable grip range is 1.25 inch minimum to a maximum of 1.75 inches

This locking trigger latch comes with:

• Single key
• Adjustable screw
• Mounting bracket
• Mounting screw
• Adjustment bolt both with hex heads for faster installation



Ideal for these locking trigger latch applications:

• Compartment door latches
• Cabinet door latches
• Marine latches / Boat compartment latches
• Work truck compartment door latches
• Bus baggage compartment latches

Locking Trigger Latch Specifications
Keyed 502
Material: Zinc die cast
Finish:  Black Powder Coat
Overall length: 4.11 in.
Width: 1.0  in.
Grip Range: 1.25 in. to 1.75 in.
