Spring Latch Product Description

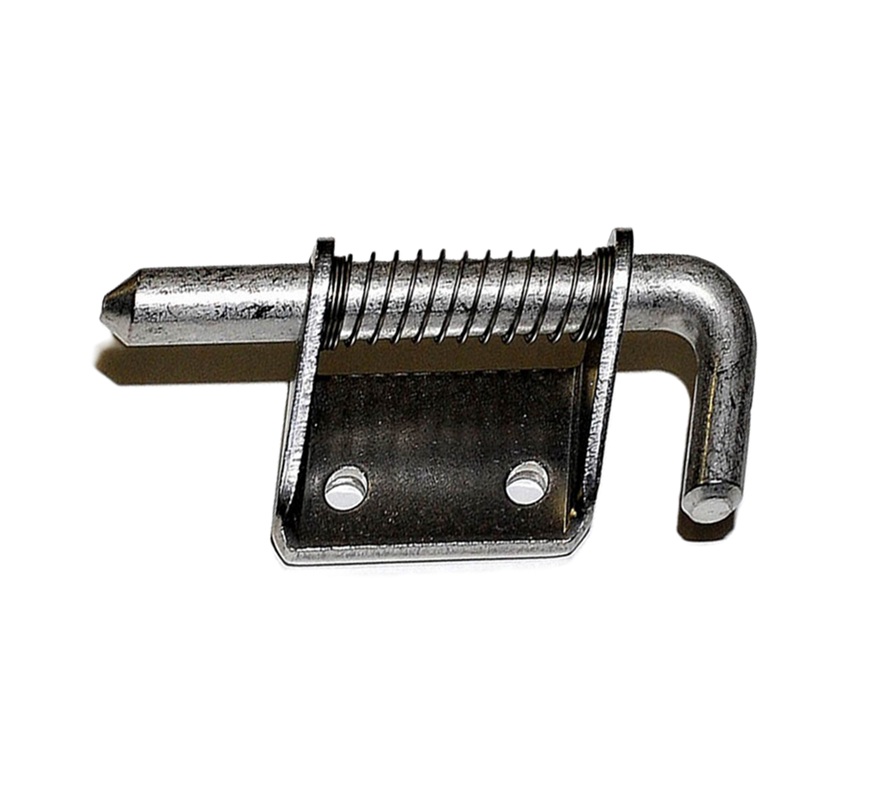

2 inch Spring Latch
Paneloc Heavy Duty Spring Latches are fabricated from
quality materials including stainless steel and cold rolled steel
with zinc finish.
Spring Latch has a closed knuckle for added durability and strength.
Easy Installation
Easy and inexpensive installation can be accomplished using screws, rivets, or by welding.
The Spring Latch can be surface-mounted on the inside of door panel or between outer and inner door skins.
Applications
The spring latch is a reliable and low-cost heavy duty spring latch. The smooth, trouble free action combined with easy access and secure closure make it an ideal spring latch for the following applications:
- Hinged doors & inspection doors
- Hinged panels & access panels
The simple barrel bolt fastener has many practical applications including electronic cabinet latches and industrial equipment latches
Spring Latch Body Specifications
BODY
Length: 2.0 in.
Width: 0.656 in.
Height: 1.12 in.
Thickness: 0.12 in.
H1 Hole Location: 0.375 in.
H2 Hole Location: 0.437 in.
H3 Hole Location: 1.125 in.
* D Hole Diameter: 0.265 in.
Spring Latch Pin Specifications
PIN
P=Pin Diameter: .375 in.
*E=Extension: 1.250 in.
*R1=Handle Length: 1.187 in.
*R2=Handle Extension: .687 in.
