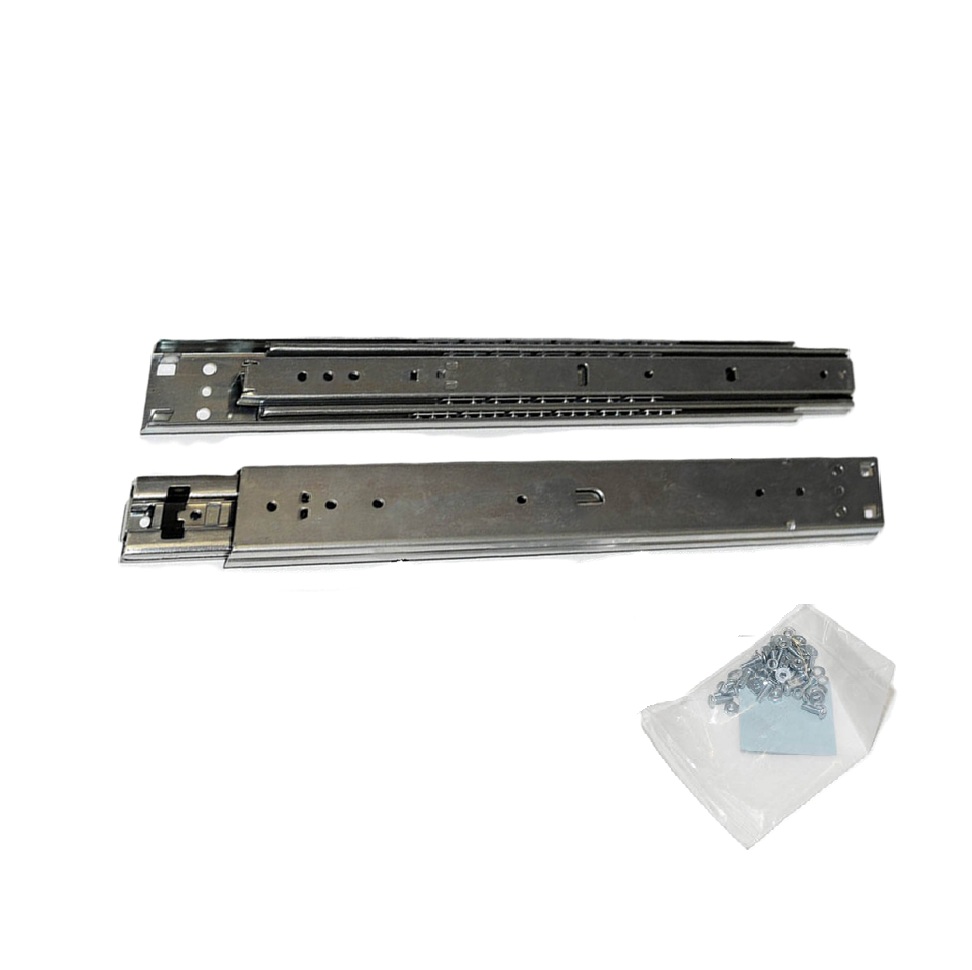

Accuride 3307 14 Inch Lock Out Drawer Slides
Accuride 14 inch drawer slides are medium duty, lock-out drawer slides with over travel and latch disconnect.
Precision ball bearing industrial drawer slides ideal for medium loads up to 148 lb. capacity.
Drawer slide lock-out feature holds pullouts in a stable position when extended.
The Accuride 14 inch medium duty lock out drawer slide is designed for use in medium-duty industrial drawers, trays or electronic enclosures for applications up to 148 lbs. including:
- EIA rack-mount chassis drawer slides
- Power supply drawer slides
- Disc/Tape drive drawer slides
- Industrial work station drawer slides
- Dispensing equipment drawer slides
PRICE IS PER PAIR
Requires #8 pan head screws-NOT INCLUDED
Optional bracket kit available for electronic enclosure mounting
RoHS Compliant
Accuride 3307 14 Inch Lock Out, Latch Disconnect Drawer Slide Specifications
- 14 Inch Drawer Slide
- Up to 148 LBS load capacity
- Height 2 in.
- 1 inch over travel
- Bracket or hard mounting
- 0.50 inch side space
- Front disconnect latch
- Lock out holds chassis fully open
- Tested drawer width 14 in.
- Even lengths 14 in.
- Bright electro-zinc plated finish
